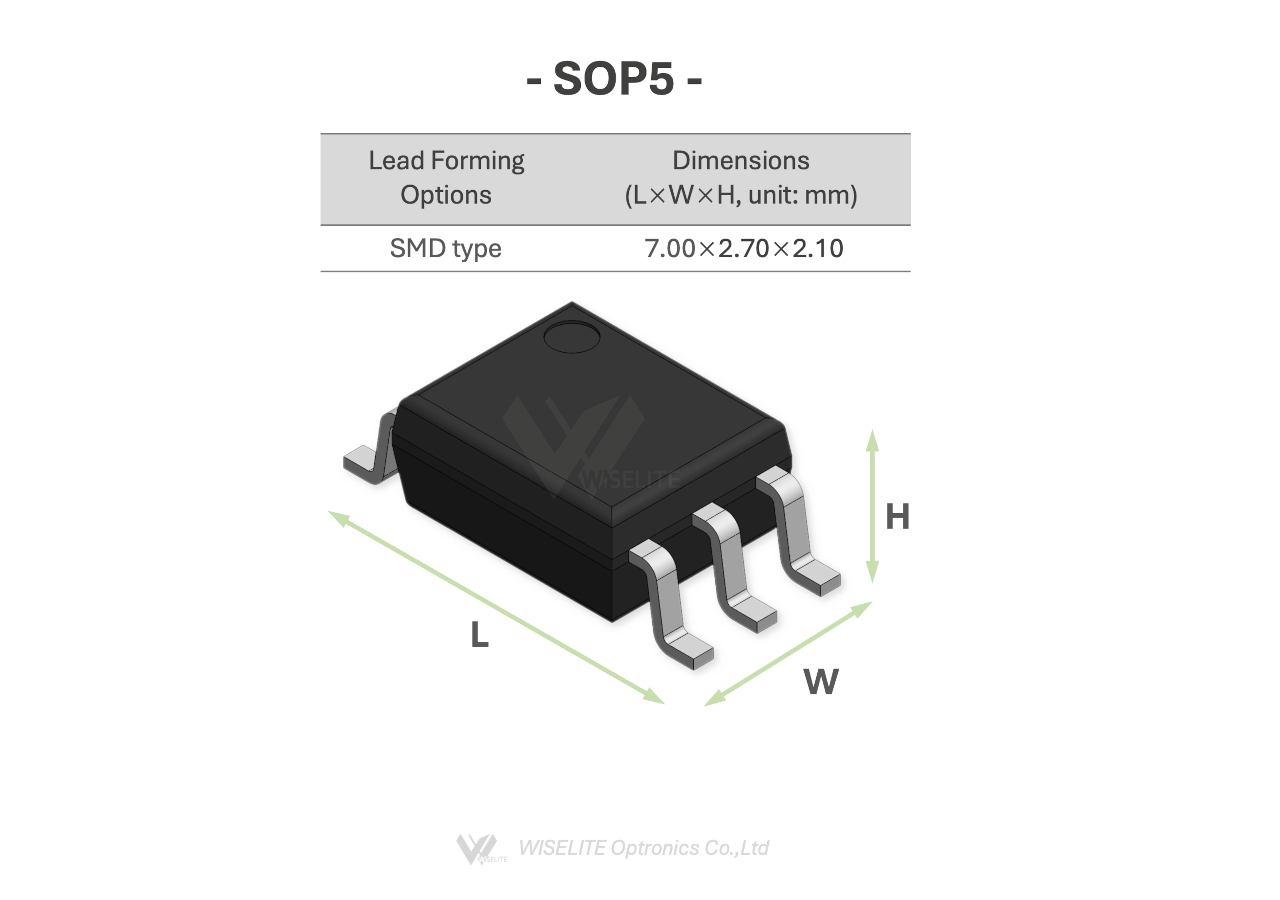

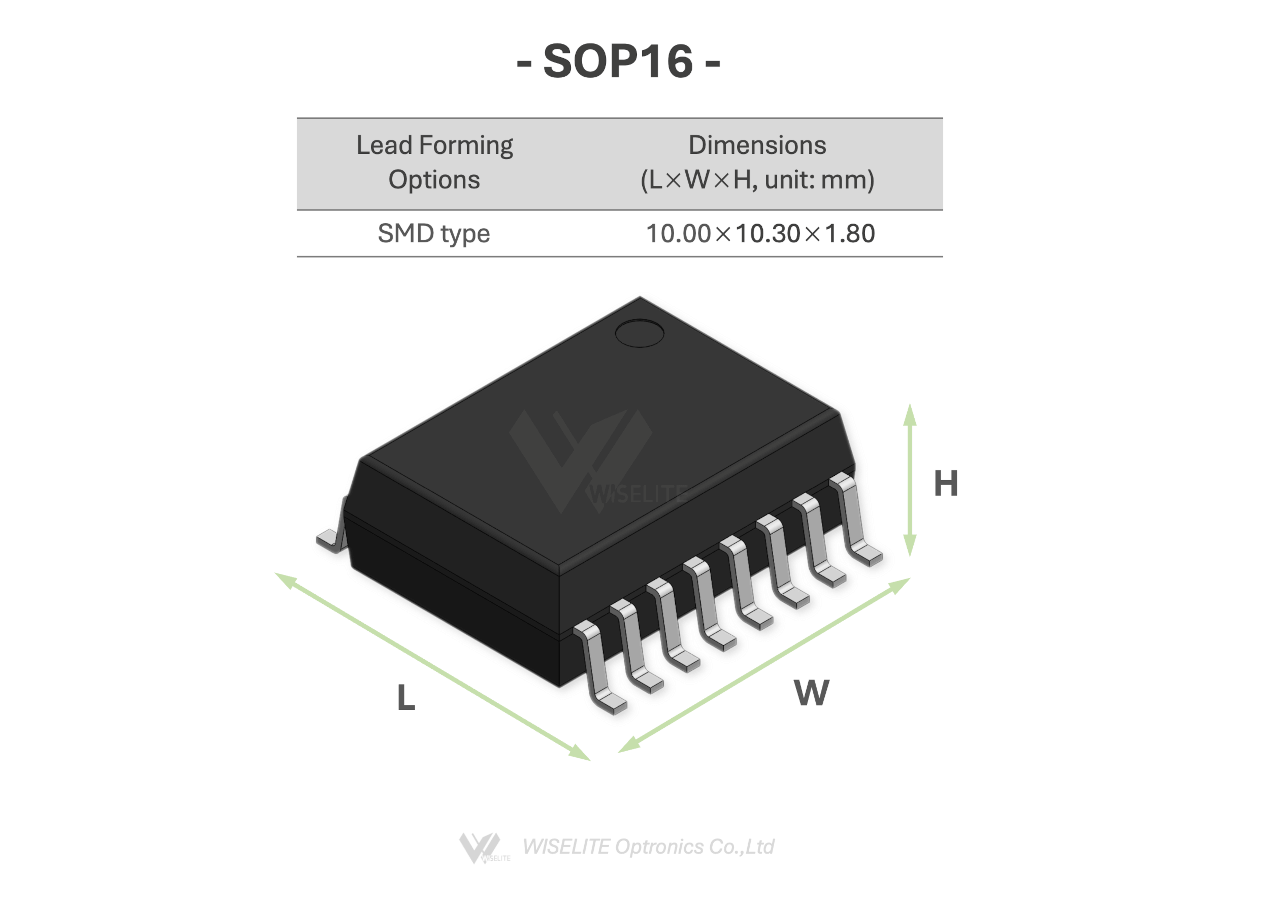

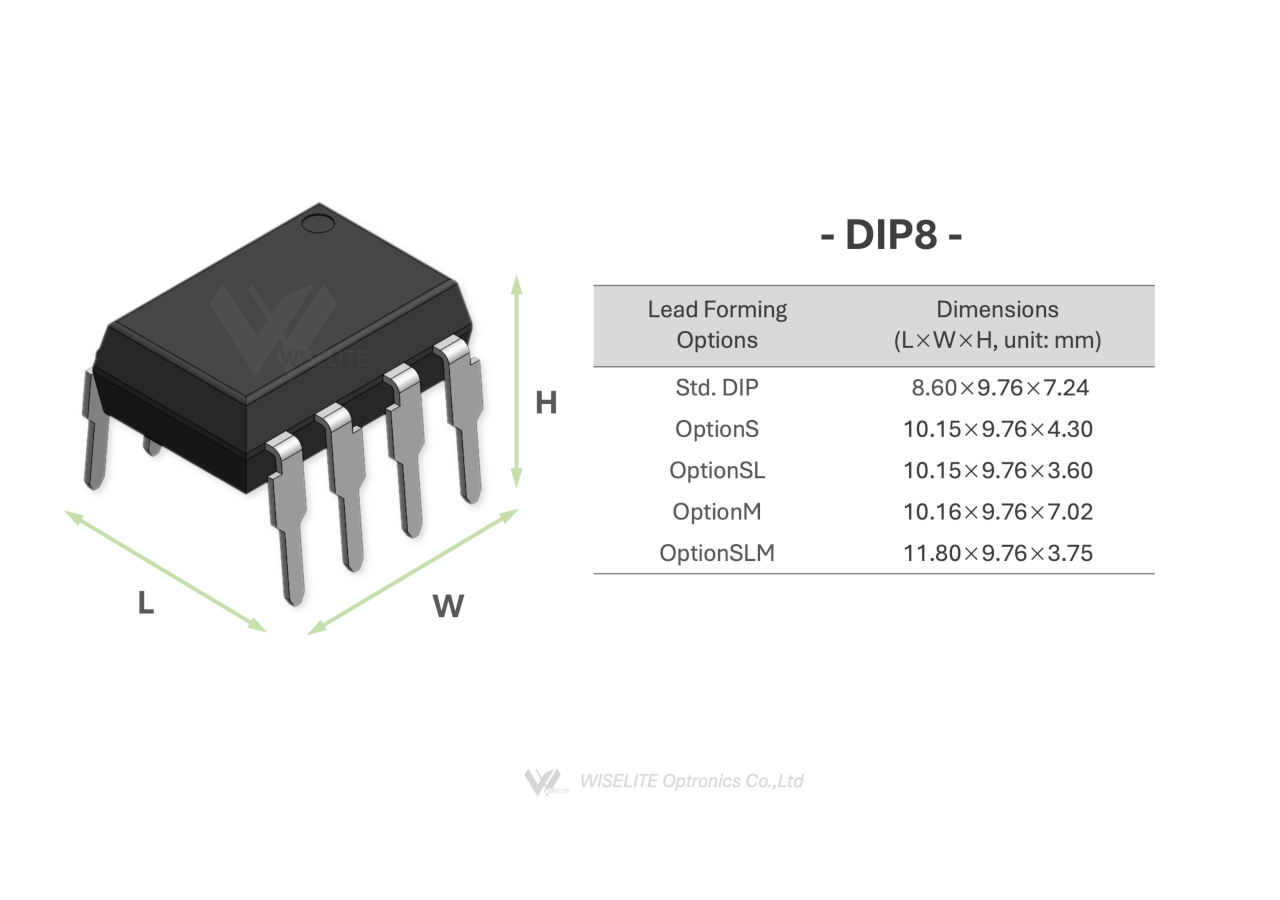

Gate Driver, DIP8, SOP5, LSOP6 & LSOP16

   To see a larger version of the photo, please click on it



   FUNCTION

   DC 4.0A IGBT Gate Driver

   DC 3.0A IGBT Gate Driver

   DC 2.5A IGBT Gate Driver

   DC 1.5A IGBT Gate Driver

   DC 1.0A IGBT Gate Driver

   DC 0.8A IGBT Gate Driver







    ✉️  Contact Us





Back

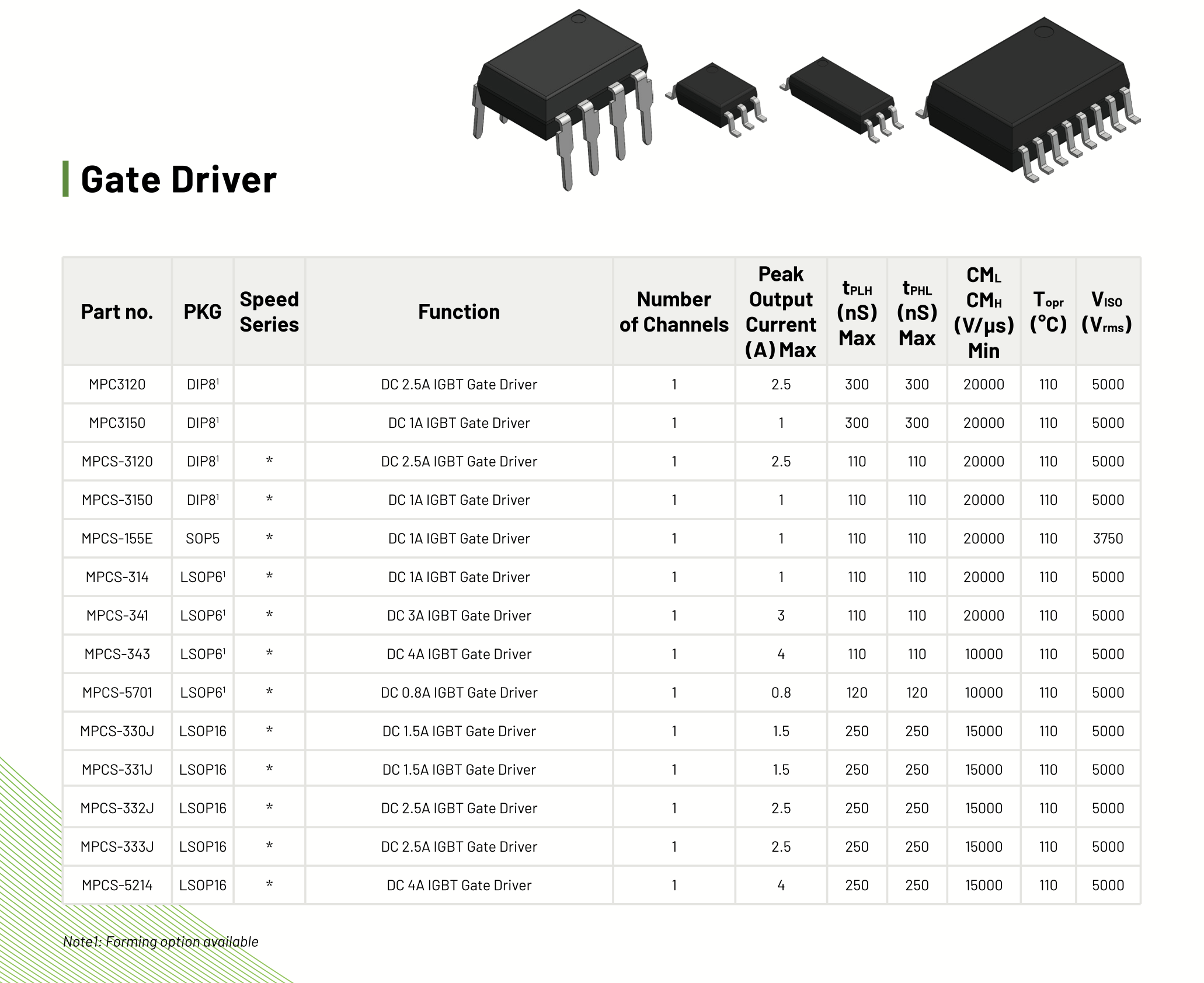

Product Specifications

  • Part no. Download PKG Speed
    Series    		 Function Number
    of Channels    		 Peak
    Output
    Current
    (A)
    Max    		 tPLH
    (nS)
    Max    		 tPHL
    (nS)
    Max    		 CML
    CMH
    (V/μs)
    Min    		 Topr
    (℃)    		 VISO
    (Vrms)
    MPC3120 　 DIP81 　 DC 2.5A IGBT Gate Driver 1 2.5 300 300 20000 110 5000
    MPC3150 　 DIP81 　 DC 1A IGBT Gate Driver 1 1 300 300 20000 110 5000
    MPCS-3120 　 DIP81 ✻ DC 2.5A IGBT Gate Driver 1 2.5 110 110 20000 110 5000
    MPCS-3150 　 DIP81 ✻ DC 1A IGBT Gate Driver 1 1 110 110 20000 110 5000
    MPCS-155E 　 SOP5 ✻ DC 1A IGBT Gate Driver 1 1 110 110 20000 110 3750
    MPCS-314 　 LSOP6 ✻ DC 1A IGBT Gate Driver 1 1 110 110 20000 110 5000
    MPCS-341 　 LSOP6 ✻ DC 3A IGBT Gate Driver 1 3 110 110 20000 110 5000
    MPCS-343 　 LSOP6 ✻ DC 4A IGBT Gate Driver 1 4 110 110 10000 110 5000
    MPCS-5701 　 LSOP6 ✻ DC 0.8A IGBT Gate Driver 1 0.8 120 120 10000 110 5000
    MPCS-330J 　 LSOP16 ✻ DC 1.5A IGBT Gate Driver 1 1.5 250 250 15000 110 5000
    MPCS-331J 　 LSOP16 ✻ DC 1.5A IGBT Gate Driver 1 1.5 250 250 15000 110 5000
    MPCS-332J 　 LSOP16 ✻ DC 2.5A IGBT Gate Driver 1 2.5 250 250 15000 110 5000
    MPCS-333J 　 LSOP16 ✻ DC 2.5A IGBT Gate Driver 1 2.5 250 250 15000 110 5000
    MPCS-5214 　 LSOP16 ✻ DC 4A IGBT Gate Driver 1 4 250 250 15000 110 5000
